Stack’s Pro-Control range of professional analogue gauges offer unrivalled accuracy thanks to their precision stepper motor needle movement and solid state sensors.
They feature a lowest pressure recall and the following user configurable options:
Maximum & minimum alarms each of which when triggered will change the dial face colour to one of seven selectable by the user. A seperate"Over warning" point can be set for both maximum & minimum which will cause the dial face to flash.
The Pro-Control function outputs can be used to trigger warning lights, audible alarms, fan or pump relays or even cut the ignition when an alarm threshold is crossed. The active region for the Pro-Control outputs are user configurable. For example consider a pressure gauge with a low warning set at 20 Psi. The gauge can be configured so the associated Pro-Control output is active below 20 Psi or becomes active above 20 Psi, likewise if the high warning was set at 90 Psi the Pro-Control output could be configured to be active either below or above 90 Psi.
A choice of seven dial face illumination colours (white, red, yellow, green, blue, purple or turquoise). Alarms will still change the colour of the dial face illumination if required to any of the other six available colours.
All Stack Pro-Control gauges are supplied with a wiring harness & associated solid state sensor (except fuel level & battery voltage versions).

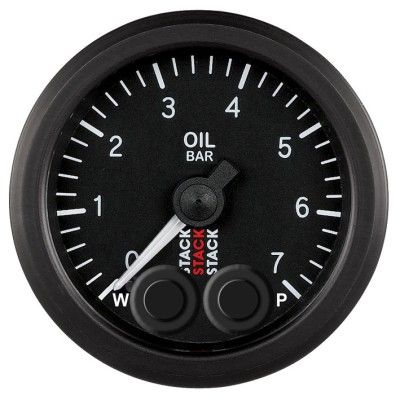

The Stack Pro-Control oil pressure gauge is supplied with a 1/8NPT male threaded sensor and then a M10 x 1 male to 1/8 NPT female bush is supplied in the box should you require it
