Safety baffle foam

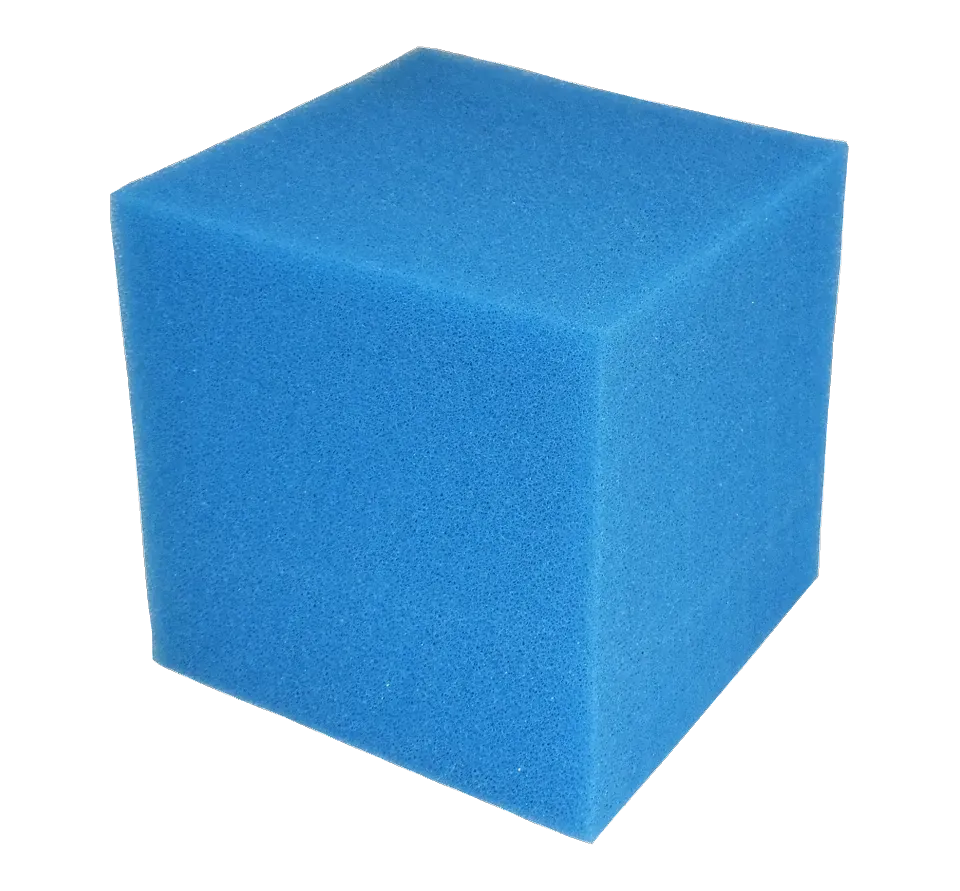

Blue Safety Baffle Foam - Diesel / Water / Methanol
Reticulated (open pore) Blue Safety Foam for use with Diesel / Water / Methanol
Specification:
? For in-tank use with Diesel / Water / Methanol
? Reduces fuel slosh
? Suppresses explosion (fuel cell must be at least 80% foam-filled)
? Sold in 28 Litre cubic foot blocks (300x300x300mm)
? Reduces fuel cell capacity by up to 5% (3% displacement, 2% 'clingage')
Baffle foam can be supplied in custom shapes and quantities. Please contact the ATL Sales Team for further information.
Technical data:
? Primary Uses ? Diesel, Methanol, Water
? Colour ? Light Blue
? Specification ? MIL-B-83054
? Polyol Type ? Polyether
? Density Range (lb/ft^3) ? 1.20 to 1.45
? Porosity, pore size (ppi) ? 24 to 34
? Air Pressure Drop (in. of water) ? 0.270 to 37015
? Ultimate Elongation (%) Min ? 100
? Tear Resistance (lb/In) Min ? 3
? Constant Deflection Compression Set (%) Max ? 30
Compression Load Deflection at:
? 25% Deflection (psi) Min ? 0.35
? 65% Deflection (psi) ? 0.6
? Fuel Displacement/ Max Vol % ? 2.5
? Fuel Retention (Max Vol %) ? 5
? Flammability (in/min) Max ? 15
? Extractable Materials (Wt %) Max 3 ? 3
? Entrained Solid Contamination (mg/ft^3) Max ? 11
? Typical Electrical Resistivity (OHM-CM) ? 1x10^15
